Speaker Box Lite APK

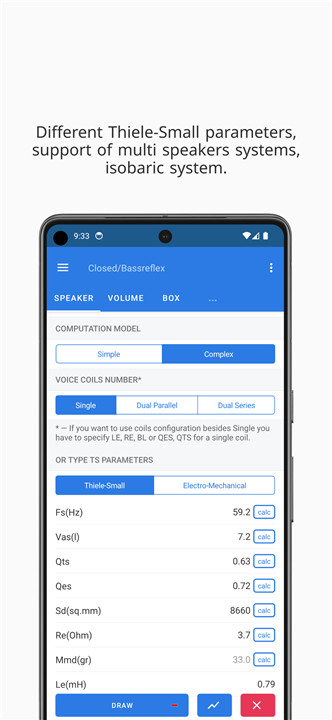

This application caters to both newcomers and seasoned enthusiasts in the realm of acoustic system construction. Its standout feature is the ability to calculate the optimal volume for a subwoofer enclosure based on Thiele-Small parameters (FS, VAS, QTS).

Here’s a breakdown of the features available for box calculations:

- It supports various enclosure types, including closed, vented (bass-reflex, ported), 4th order bandpass, and 6th order bandpass.

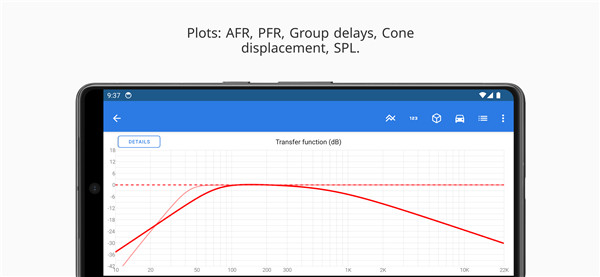

- Users can access amplitude response, phase response, group delays, cone displacement, and SPL charts for all enclosure types.

- The app offers multiple methods for generating box parameters, such as optimal volume, maximum flat amplitude response, and boom-box configurations, among others.

- For vented boxes, simply select the desired frequency and the amount of boost, and the program will automatically determine the necessary box parameters.

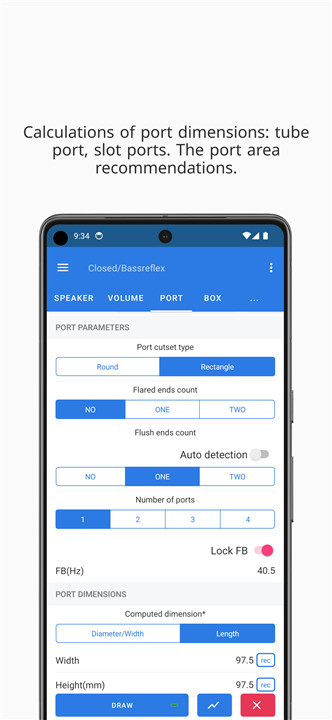

- It includes calculations for both rounded and rectangular ports.

- The volume calculations account for the displacement of ports and speakers.

- Currently, it provides assembly calculations for closed boxes only.

By registering for our service, you can save your projects in the cloud, making them accessible on any device with our application.

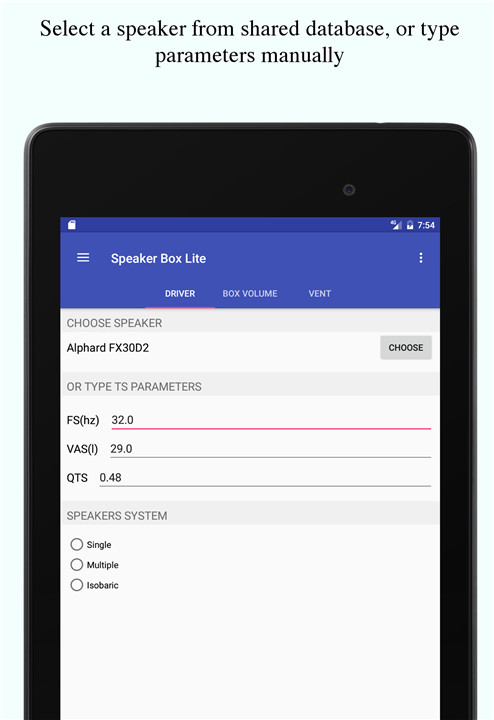

Additionally, there is a shared online database featuring around 4,000 speaker drivers. You can add your own speakers and modify existing entries, which will be reviewed by a moderator before becoming available to other users of "Speaker Box Lite."

We encourage you to leave reviews for the loudspeakers you’ve used, detailing the box type and its parameters to assist fellow users in selecting the right speaker and box volume.

Remember to share your feedback and suggestions for the project's development!

FAQ

Q: What is Speaker Box Lite?

A: Speaker Box Lite is an application designed for both beginners and experienced enthusiasts in the field of acoustic system construction. It specializes in calculating the optimal volume for subwoofer enclosures based on Thiele-Small parameters (FS, VAS, QTS).

Q: What are Thiele-Small parameters?

A: Thiele-Small parameters are a set of values that describe the physical and electrical properties of a loudspeaker. These parameters include resonance frequency (FS), equivalent compliance (VAS), and total quality factor (QTS). They are crucial for designing efficient and high-performance subwoofer enclosures.

Q: What types of enclosures does Speaker Box Lite support?

A: Speaker Box Lite supports various enclosure types, including closed, vented (bass-reflex, ported), 4th order bandpass, and 6th order bandpass.

-----------------

What's New in the Latest Version 1.24.1

Last updated on Feb 23, 2025

Fast designing of the subwoofer boxes Download the latest version of Speaker Box Lite 1.24.1 to enjoy new features and updates immediately!

1. We’ve added a variety of box shapes! You can now design not just Rectangle and Trapezoid boxes, but also Wedge, Double Wedge, Hexagon, Octagon, and their different variations.

2. Various bug fixes and other improvements for a smoother experience.

Thank you for your continued support!
