Pipedata: Your Ultimate Piping Component Reference

For over two decades, Pipedata has been the trusted resource for engineers, designers, and piping professionals worldwide.

With a legacy dating back to 1996, our platform delivers fast, accurate, and up-to-date dimensional and weight data for 72 essential ASME piping components—all in a streamlined, user-friendly interface.

Whether you're part of a global corporation or an independent professional, Pipedata ensures precision and efficiency in every project.

Why Choose Pipedata?

Comprehensive & Reliable – All data complies with the latest ASME piping specifications, including:

• Metric, U.S. Customary, and Inch Fractions

• NPS and DN pipe sizes

• Audited weights for valves, flanges, pipes, and fittings

• Global Industry Standard – Trusted by leading organizations and professionals for accuracy and relevancy.

• Easy Access – Find critical information in seconds, saving you time and reducing errors.

Key Piping Components Available

Pipedata covers the most widely used ASME components, including:

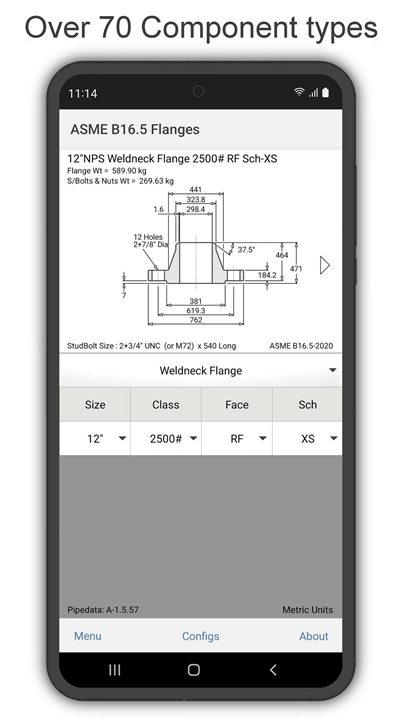

• Flanges (ASME B16.5-2013)

• Weld Neck, Slip On, Blind, Threaded, Socket-Welded, Lapped, Long Welding Neck

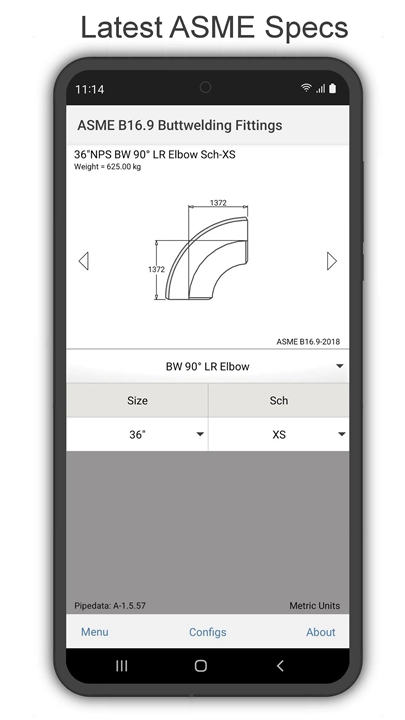

• Buttwelded Fittings (ASME B16.9-2007)

• 45° & 90° Elbows (Long/Short Radius)

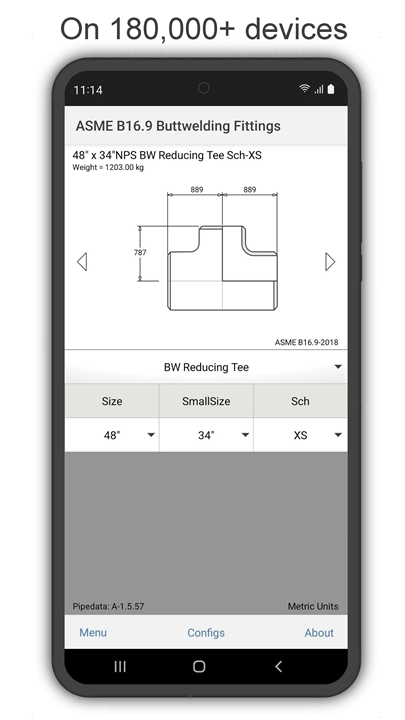

• Tees (Equal & Reducing), Caps, Concentric & Eccentric Reducers

• Lap Joint Stub Ends, 180° Returns

• Threaded & Socket-Welded Fittings (ASME B16.11-2011)

• Elbows (90°, 45°, Street), Tees, Crosses, Couplings (Full & Half)

• Caps, Plugs (Square, Hex, Round Head), Bushings

• Specialized inserts, unions, and welding bosses

• Gaskets & Seals (ASME B16.20/B16.21)

• Spiral Wound & Non-Metallic Rings (B16.5, B16.47 Series A/B)

• RTJ Soft Iron Rings (Type R, RX, BX)

• Valves (ASME B16.10-2009 / API 594)

• Gate, Globe, Ball, Control, Check (Swing & Wafer)

• Butterfly (Wafer & Lug Type), and more…

Upgrade Your Piping Workflow Today

• Streamline your designs, eliminate guesswork, and ensure compliance with Pipedata—the tool professionals rely on.

• Explore now and experience the difference!

FAQ

Q: Who uses Pipedata?

A: Pipedata is widely used by engineers, designers, fabricators, and maintenance professionals across industries like oil & gas, petrochemical, power generation, and construction—from global corporations to independent consultants.

Q: Which piping standards does Pipedata cover?

A: Pipedata complies with the latest ASME specifications, including B16.5 (flanges), B16.9 (buttwelded fittings), B16.11 (threaded/socket-welded fittings), B16.20/B16.21 (gaskets), and B16.10/API 594 (valves), among others.

Q: Does Pipedata support both metric and imperial units?

A: Yes! Pipedata offers data in metric (DN), U.S. customary, and inch fractions, making it versatile for global projects.

Version History

v1602——26 Aug 2025

For fast and easy access to dimensional, weight and piping design information. Download the latest version of Pipedata to enjoy new features and updates immediately!

*1602

Minor bug fix

*1601

Database refreshed at flanged ball valve 2500#

*1600

Database refreshed at BW Reducing Tees
