Miter Bend Layout APK

App Purpose:

This app is designed to generate flat pattern layout markings for Miter Bends, Segment Bends, Cut Bends, and Fabricated Bends commonly used in fabrication, piping, ducting, and insulation fields.

It is highly valuable for professionals working in piping fabrication, ducting, and aluminum insulation industries.

Units and Input Requirements:

• All dimensions in the app are based on millimeters (MM).

• To ensure accurate calculations and correct layouts, please enter all input dimensions in millimeters.

Layout Options:

The app offers three layout options to divide plates or pipes into equal sections:

• 12 lines

• 24 lines

• 36 lines

Additionally, it supports 48, 72, 96 lines or any number of lines entered manually according to user requirements.

Features and Calculations:

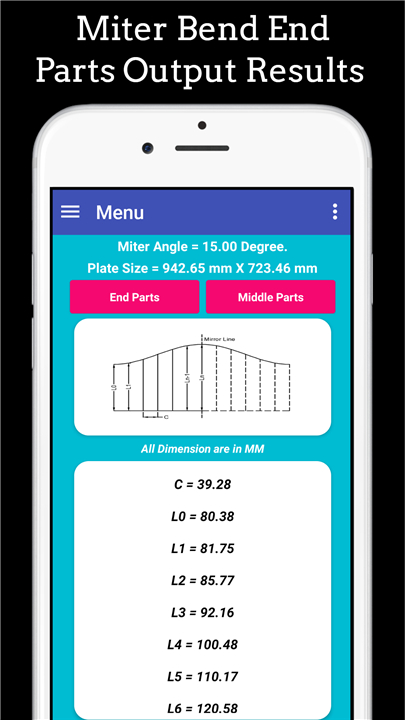

• Calculates and displays the Miter Angle on the results screen.

• Determines the required cutting plate size to help you plan raw material usage efficiently.

• Displays layouts of both the first and last parts, as well as the middle part, for better understanding and marking accuracy.

Application and Industry Use:

• This app is especially useful for professionals involved in fabricating pipelines, HVAC ducting, and aluminum insulation.

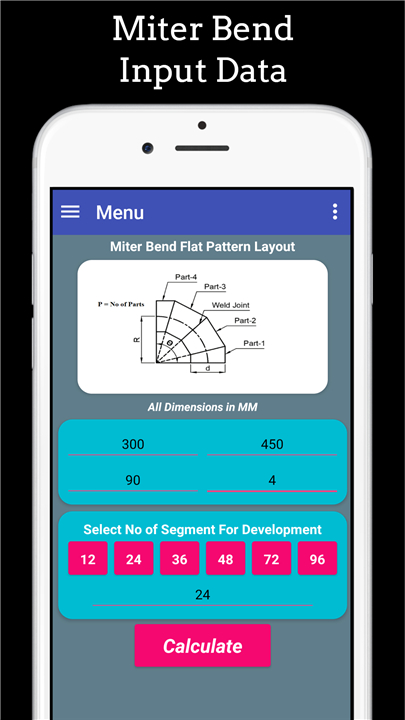

• It also supports layout generation based on inputs such as diameter, bend radius, number of bend parts, and angle of turn.

Guidelines for Input Dimensions:

• For flat plate layout marking, input the diameter as the mean diameter.

• For direct pipe layout marking, input the outer diameter for higher accuracy.

Layout Accuracy Selection:

• You can select layout options of 12, 24, or 36 lines depending on the level of accuracy required for your project.

Additional Notes:

• Please note that cutting allowances are not included in the app's calculations.

• You need to add your own cutting allowance based on project requirements.

Suitable Applications:

• Ideal for use in cut bends, segment bends, fabricated bends, miter bends, layout marking, layout development, and raw plate sizing for miter bends.

• It is also suitable for fabrication, process equipment manufacturing, and related fabrication tasks.

Industries Served:

• Fabrication Industry

• Process Equipment Manufacturing

• Ducting Manufacturing Industry

• Sheet Metal Manufacturing Industry

• Insulation Industry

FAQ

Q: Which industries will benefit the most from using this app?

A: The app is highly valuable for professionals in the Fabrication Industry, Process Equipment Manufacturing, Ducting Manufacturing Industry, Sheet Metal Manufacturing Industry, and the Insulation Industry.

Q: In what unit should input dimensions be entered?

A: All input dimensions must be entered in millimeters (MM) to ensure accurate calculations and layout results.

Q: What kind of layout options does the app provide?

A: The app provides default options to divide plates or pipes into 12, 24, or 36 equal lines. Additionally, it supports 48, 72, 96 lines, or any number of lines entered manually by the user.

Version History

vLet'sFab5.21——19 Jun 2025

Miter Bend, Segment or Fabricated Bend Flat Pattern Layout Development Markings Download the latest version of Miter Bend Layout to enjoy new features and updates immediately!

*Let'sFab5.21

fix minor bugs and issues.
